Monitoring - Graylog

Tips

Send GELF TCP input message with nc:

echo -e '{"version": "1.1","host":"example.org","short_message":"Short message","full_message":"Backtrace here\n\nmore stuff","level":1,"_user_id":9001,"_some_info":"foo","_some_env_var":"bar"}\0' | nc -w 1 graylog-server 12201

Examples

Pipeline rules

Drop message with a specific message:

rule "Drop ovn hexa messages for OCP4"
when
contains(to_string($message.message), "....")
and contains(to_string($message.namespace_name), "openshift-ovn-kubernetes")
then
drop_message();
end

Format message:

rule "Format OCP4 Ingress logs"
when
contains(to_string($message.ocp_cluster), "ocp4")
and to_string($message.namespace_name) == "openshift-ingress"
and contains(to_string($message.message), "router-log")
then
let fmt_message = regex_replace(".*: (.*)", to_string($message.message), "$1");
set_fields(to_map(parse_json(fmt_message)));
end

Dashboard

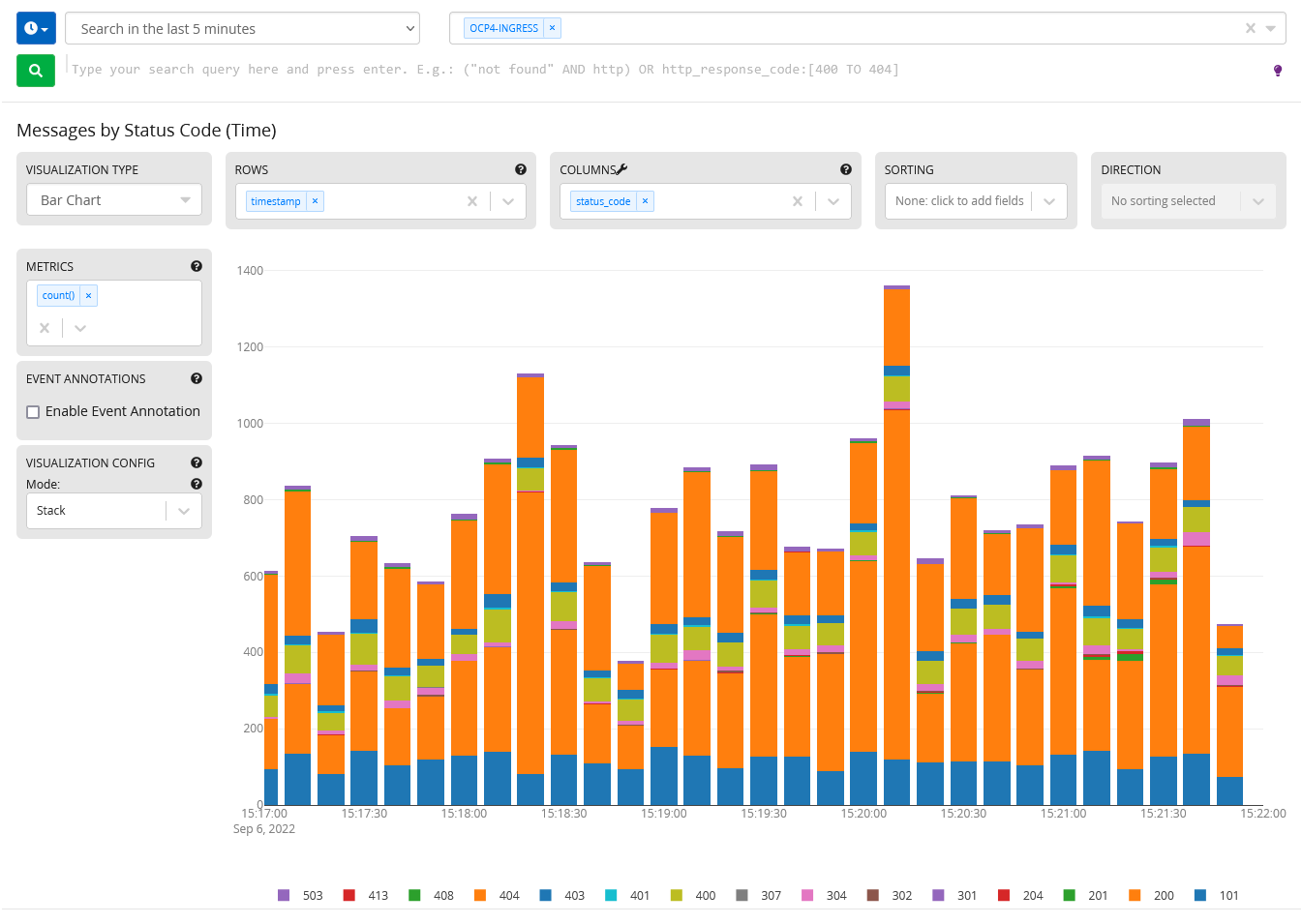

Example of bart chart:

Example of pie chart:

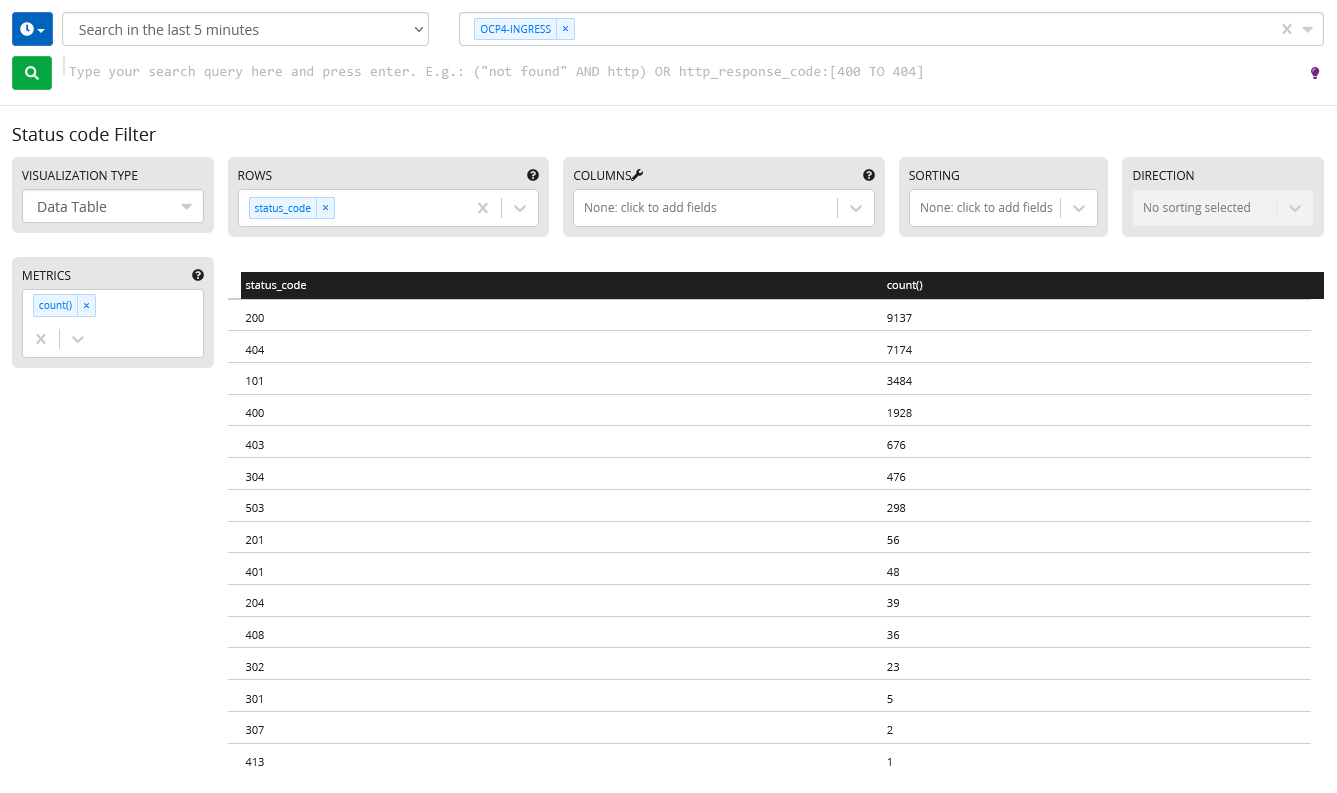

Example of table filter:
